- Portable Drive Unit
- 1 Balanced LINE Input
- Switchable High-Pass filter
- Switchable Compressor and Limiter for Input channel
- 2 separately buffered Outputs that can drive 6x APB-008 or 2x APB-024 Output expanders.
- Maximum drive capacity 48 Line or Mic Outputs.
- AudioPressBox delivers audio in broadcast quality
Note: Source of: APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX
 |
COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion. |
 |
HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out. |
 |
24V DC Power Supply |
 |
2 x buffered expander outputs |

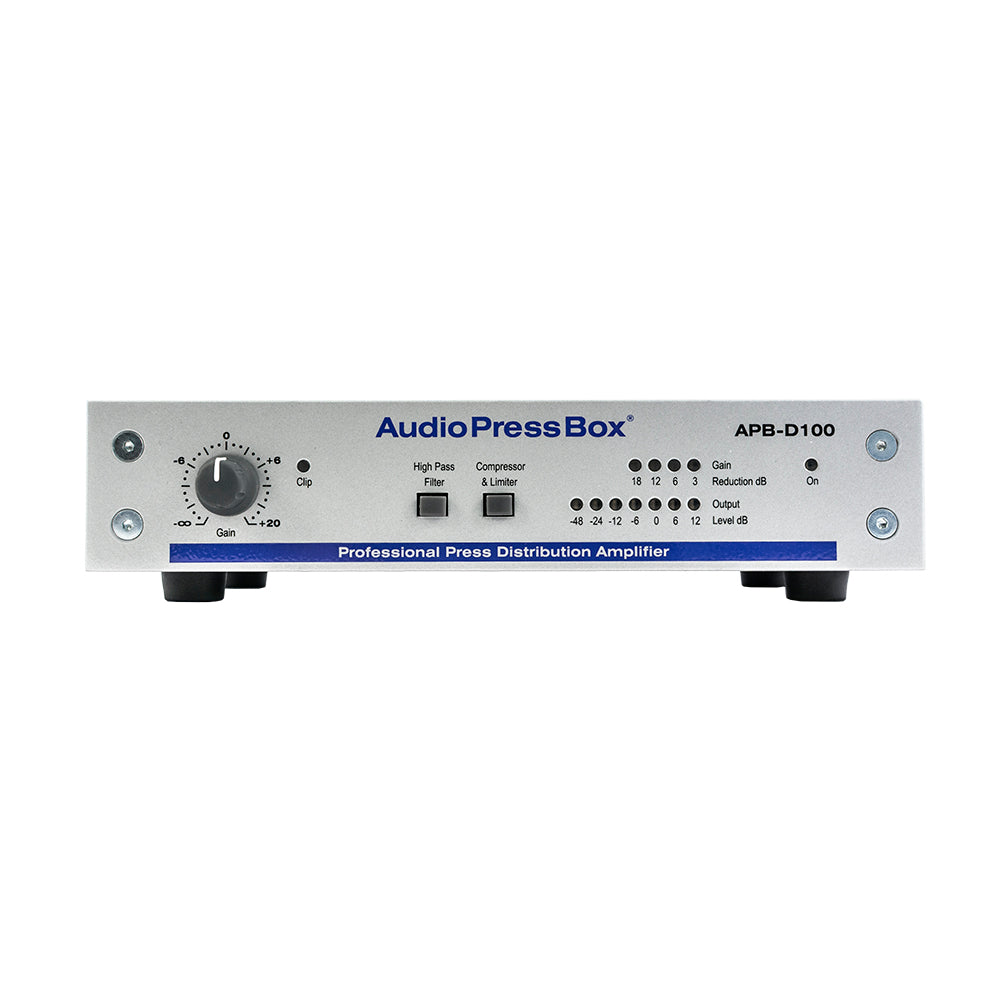

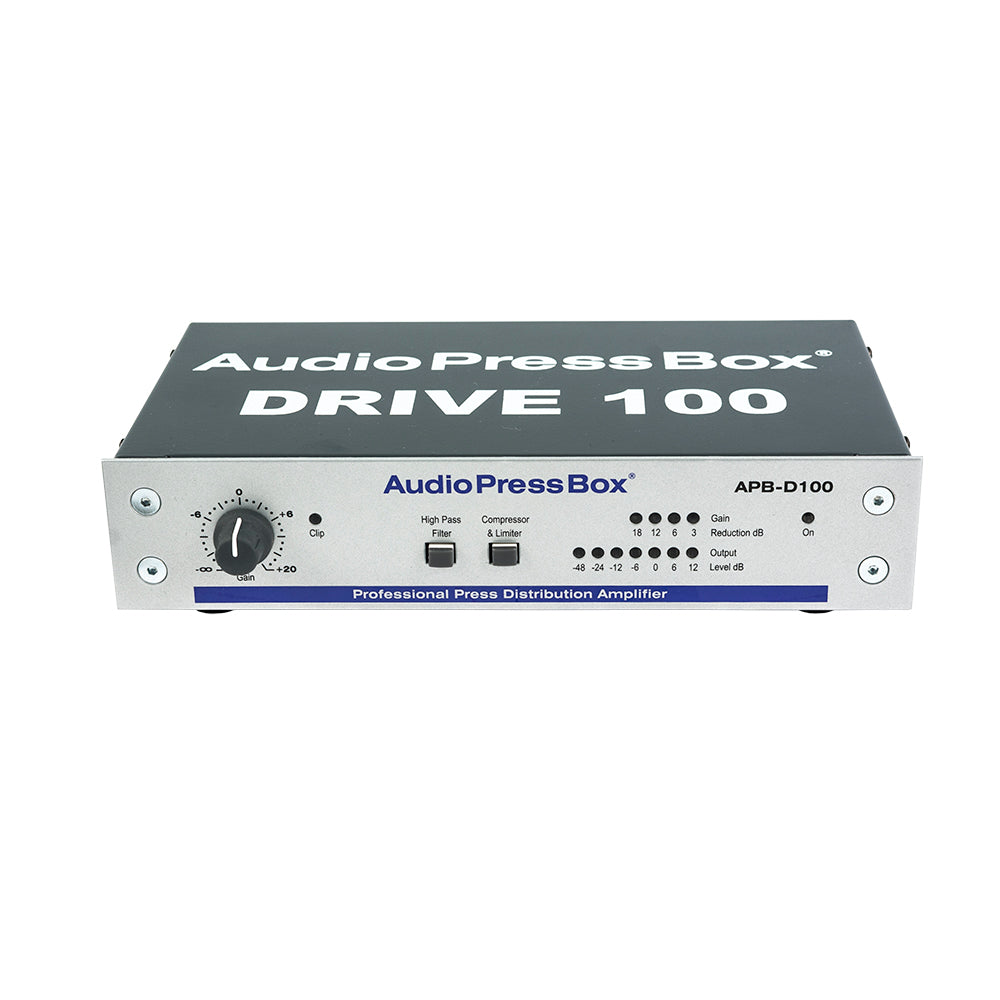

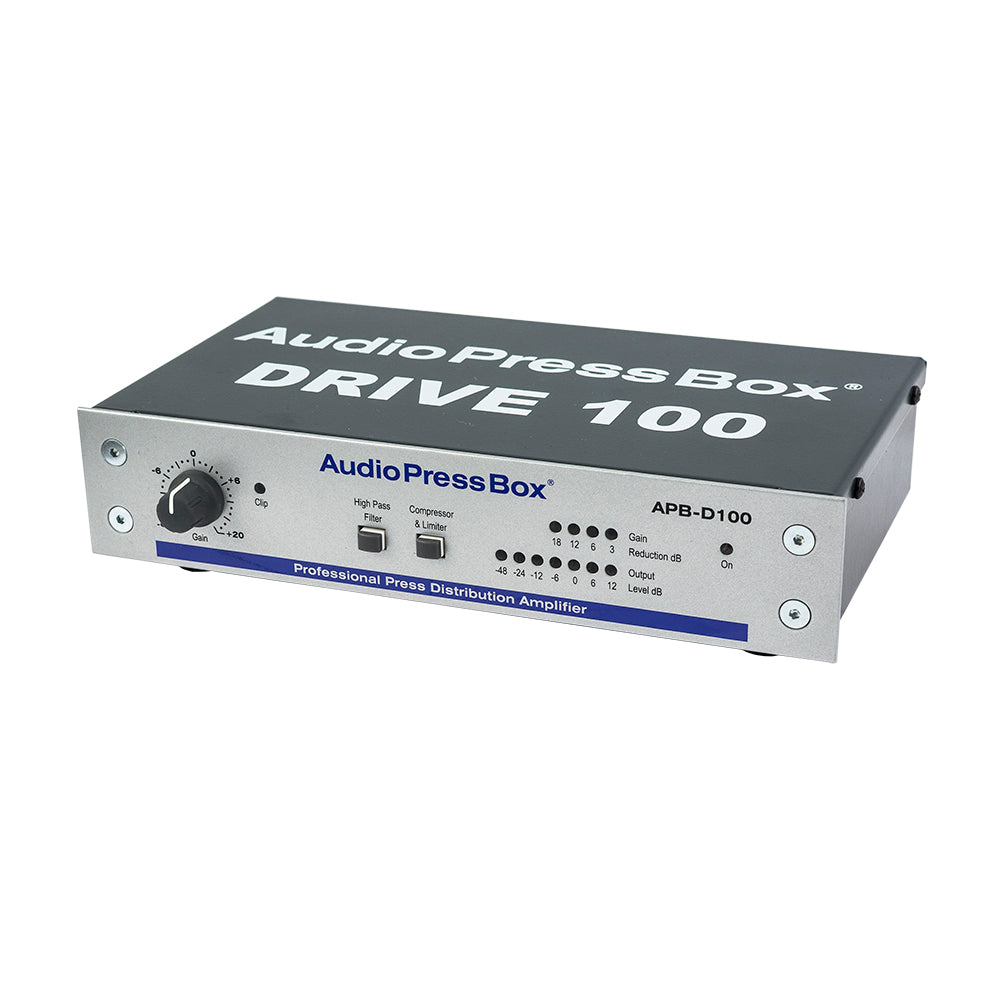

| Audio Press Box APB-D100 | ||
|---|---|---|
| Type |
1 IN/ 2 Drive OUT for 6xAPB 8-Output expanders or 2xAPB 24-Output expander Note: Total capacity: 48 Line/Mic outputs (6x APB-008 xx-EX or 2x APB-024 R-EX) or 576 Mic Outputs (48x APB-P112 SB) |
|
| Input section | ||
| Inputs | 1 | |
| Input connectors | Balanced, XLR | |
| Max. input level | Line: +32/+2dBu | |
| Input Impedance | >5kOhm | |
| Output section | ||

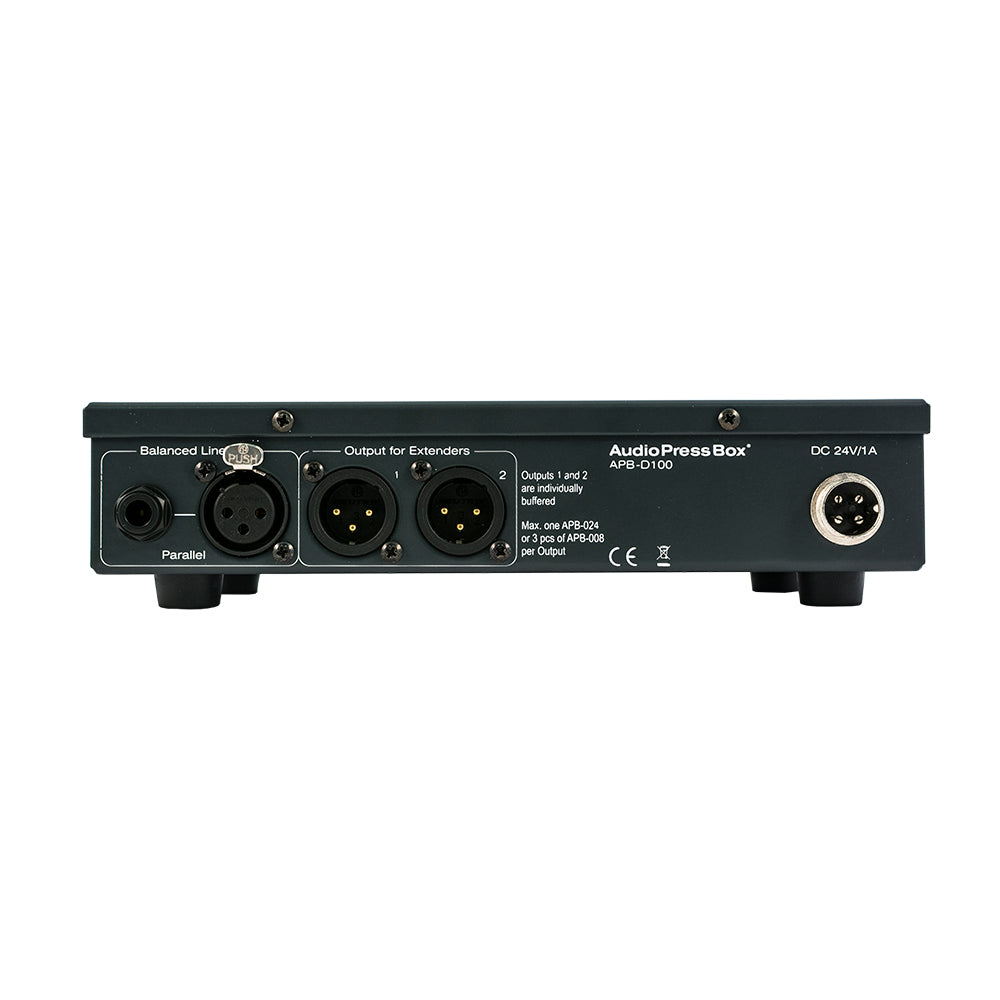

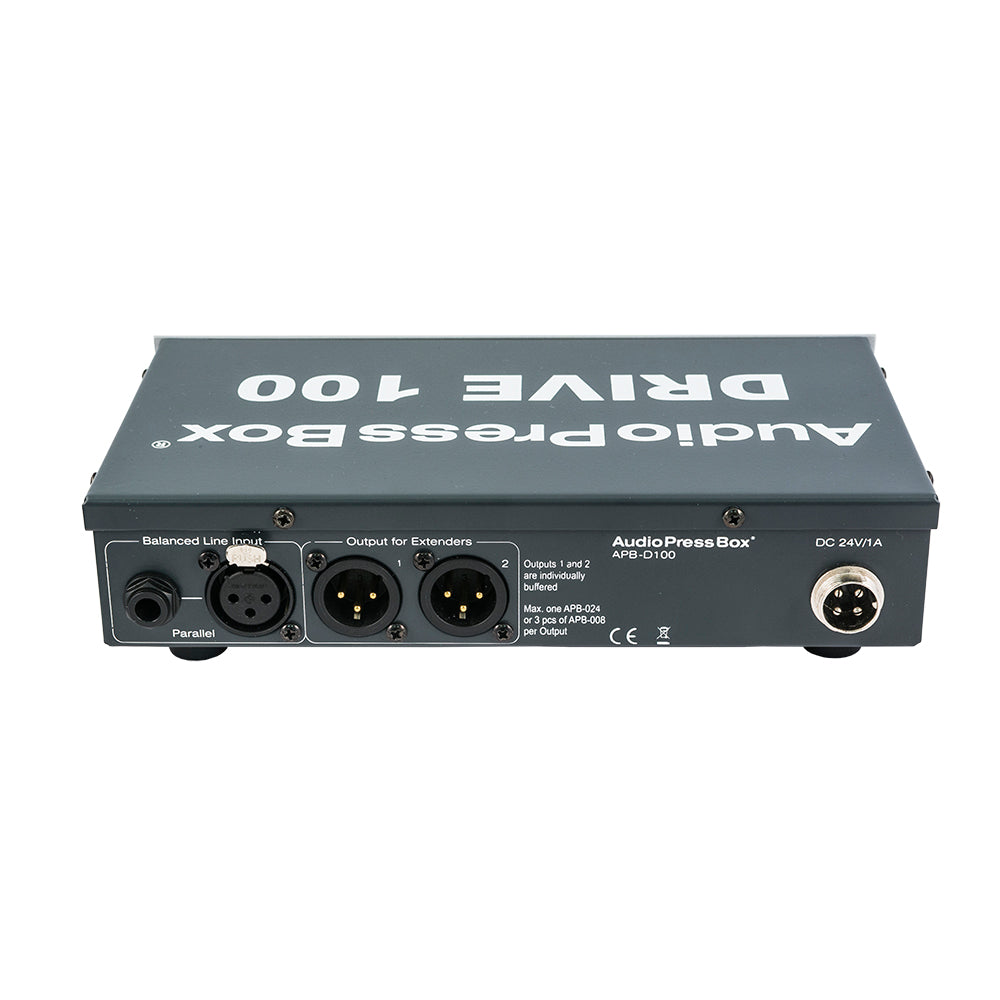

| Outputs | 2 separately buffered, balanced outputs for AudioPressBox expanders | |
| Output connectors | Balanced, XLR | |
| Nominal Output Level | +6 dBu | |
| Maximum Output Level | +20dBu with 48 Outputs in use +16dBu (600kOhm) |
|
| Output impedance | Mic: 220 Ohm | Line: 600 Ohm |
| Transformer isolated outputs: | Yes (each EXPANDER output is Independant Transformer Isolated) | |
| SNR | 86dB at 0dB Gain 78dB at +20dB Gain |
|
| Frequency Response | 30/160Hz (filter) to 60kHz/-1dB | |
| Controls | Input gain, Compressor and Limiter, High Pass Filter, Power | |
| Indicators | Input clip, Output level, Gain reduction, Power | |
| Power Supply | 24V DC, 1A external adaptor | |
| Dimensions (WxHxD) | 215x120x50mm | |
| Weight | 1030g | |
