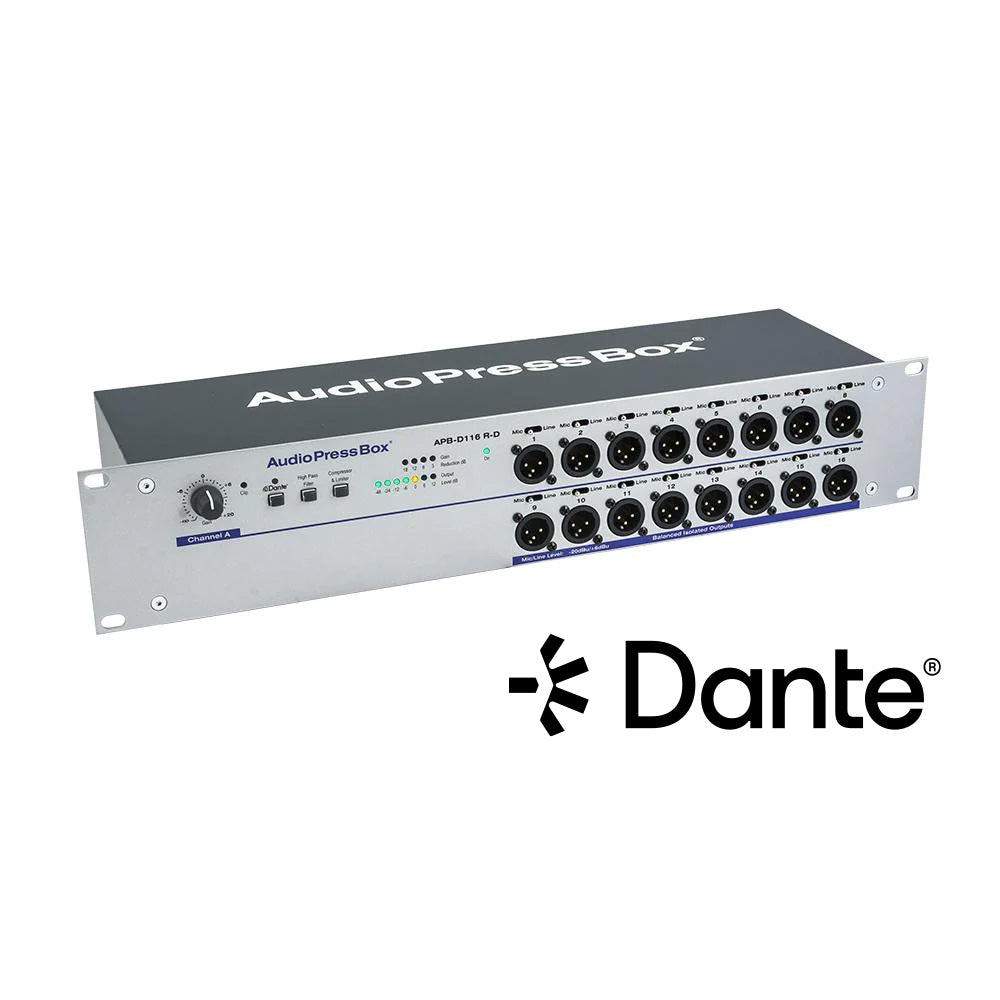

- 1 Balanced LINE Input – XLR / 6.3mm JACK
- 1-channel DANTE input with high-quality digital-to-analogue converter
- You can switch between Line or Dante input, depending on your needs.

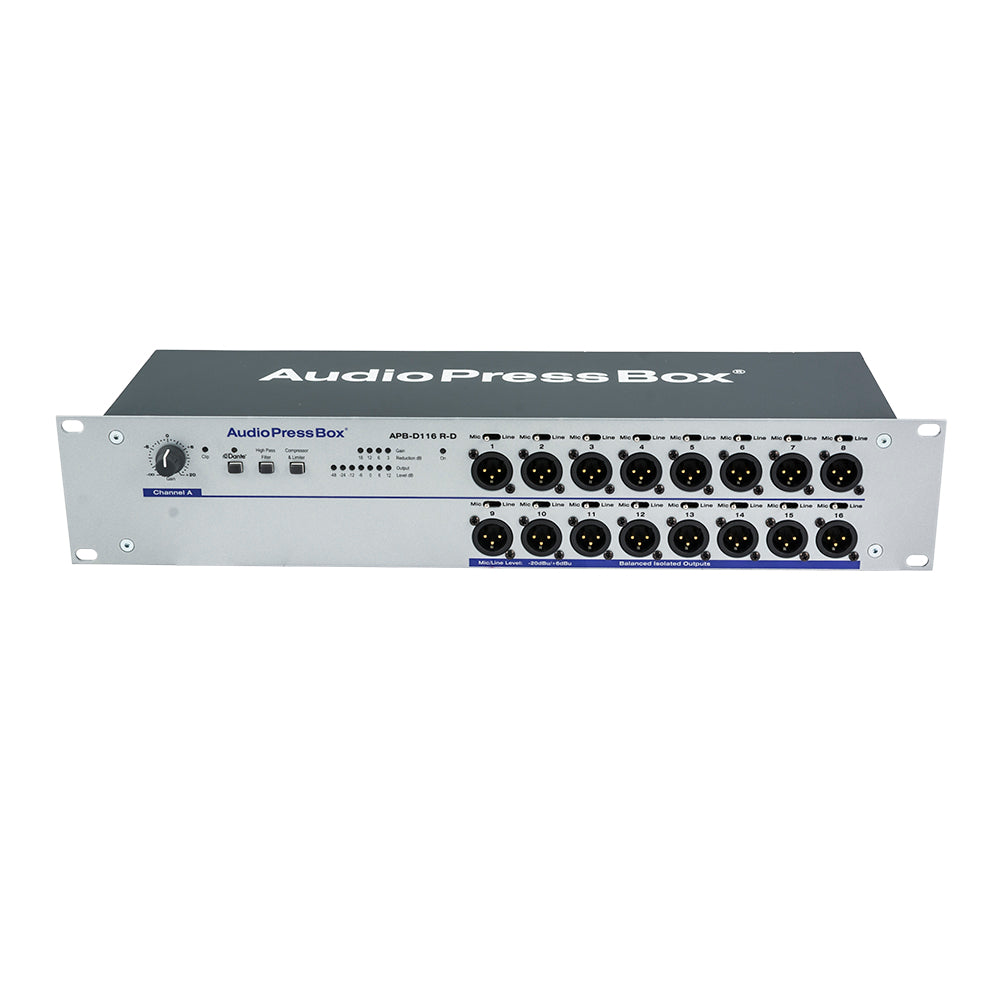

- 16 High quality balanced, individually transformer isolated outputs
- Each Output is switchable between MIC or LINE level
- Switchable High-Pass filter for each Input channel
- Switchable Compressor and Limiter for each Input channel
- 1 separately buffered Output that can drive 3x APB-008 or 1x APB-024 Output expanders
- Maximum drive capacity is 24 Line/MIC Outputs.
- Total maximum of 16+24 Line/MIC Outputs.
- AudioPressBox delivers audio in broadcast quality
Drive unit for : APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008 FB-EX, APB-024 R-EX, APB-P008 OW-EX, APB-P008 IW-EX, APB-P112 SB-EX
 |
HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out. |
 |
COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion. |
 |
Transformer Separately transformer isolated outputs. |
 |

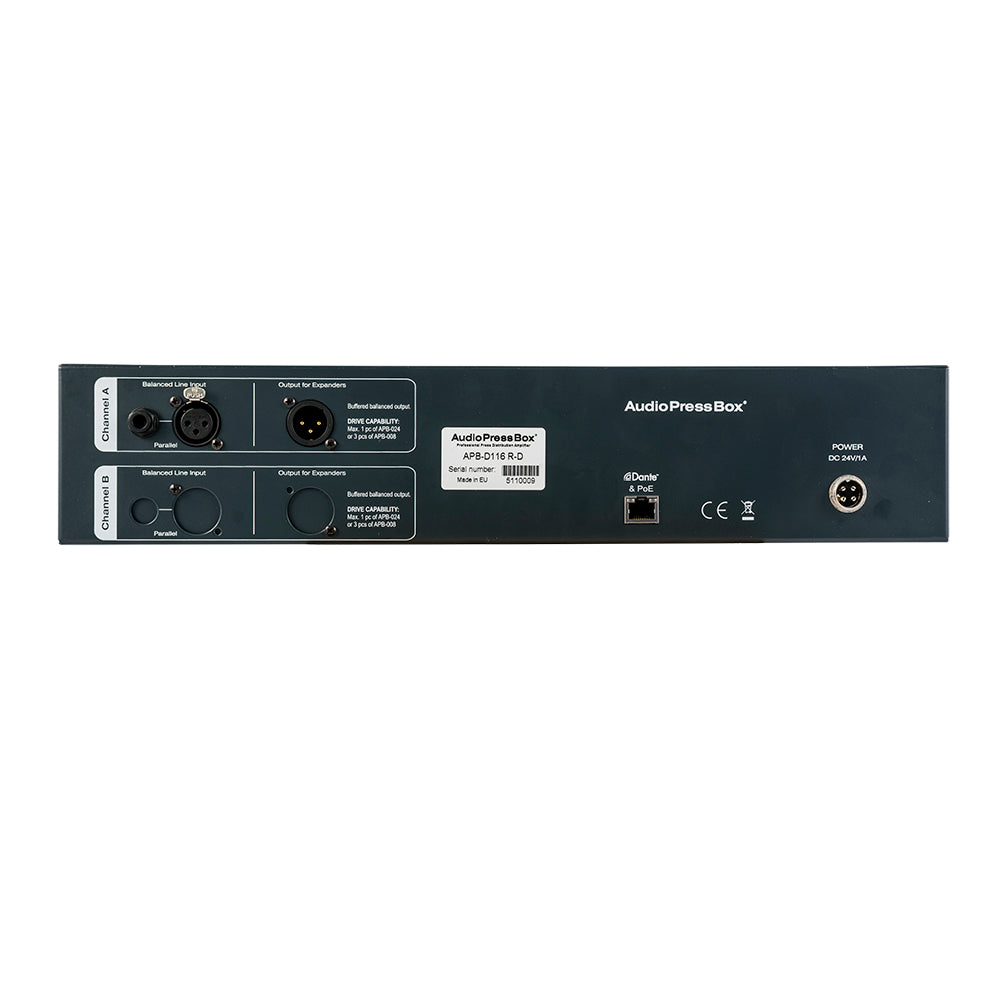

1 buffered expander output for AudioPressBox expanders. |
 |
24V DC Power Supply |
 |
1-channel Dante interface |

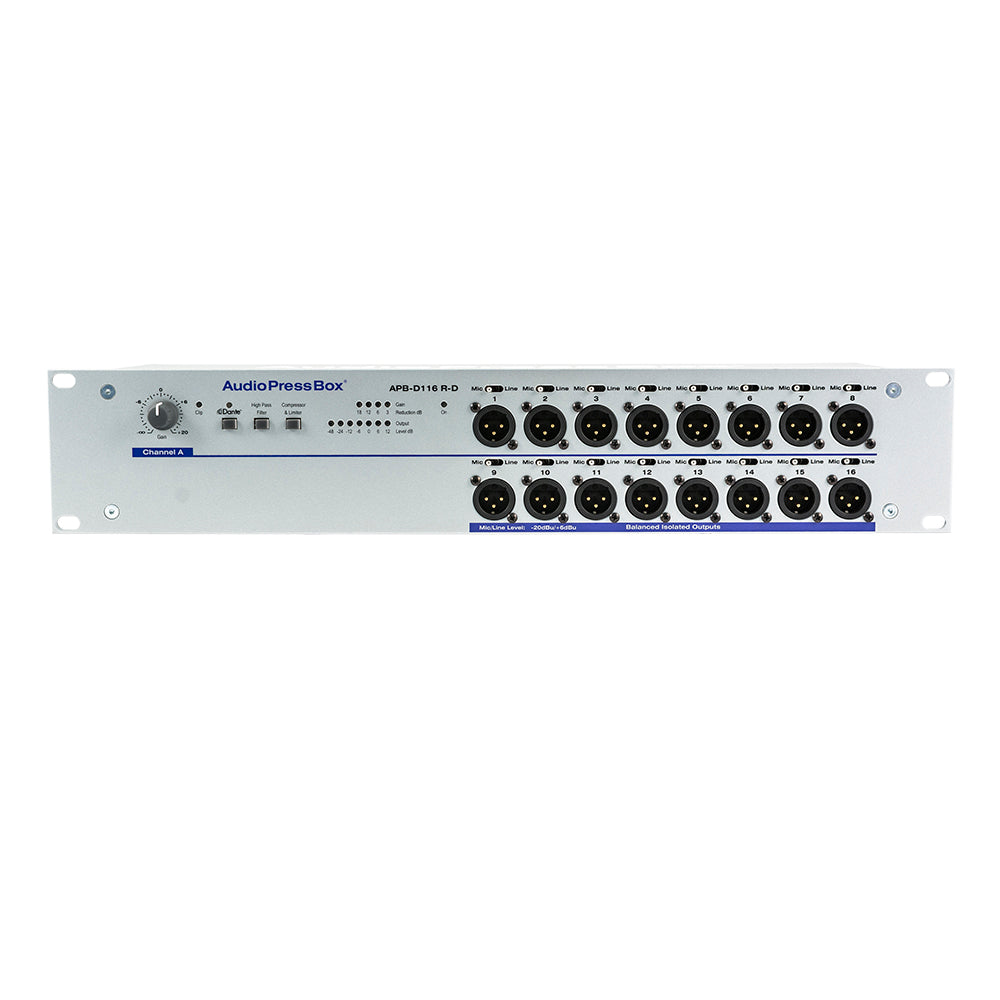

| Audio Press Box APB-D116 R-D | ||
|---|---|---|
| Type | 1 in 16 out | |
| Groups | 1 | |
| Input section | ||
| Inputs | 1 | |
| Input connectors | Balanced, XLR / 6.3 mm JACK, RJ45-Dante | |
| Max. input level | Line: +32/+2 dBu | |
| Phantom Voltage | 48V | |
| Input Impedance | >5kOhm | |
| Output section | ||
| Outputs | 16 Line/MIC level, 1 buffered output for expanders (max 24 Line/MIC outputs) | |
| Output connectors | Balanced, XLR | |
| Nominal Output Level | +6dBu (front outputs) | |
| Maximum Output Level | +20dBu (no load) +14dBu (600Ohm) |
|
| Output impedance | Mic: 220 Ohm | Line: 600 Ohm |
| Transformer isolated outputs | Yes (each output) | |
| SNR | 86dB at 0dB Gain 78dB at +20dB Gain |
|
| Frequency Response | 20/160Hz (filter) to 36kHz/-3dB (front outputs) | |
| Controls | Input gain, Dante switch, High-pass filter, Compressor, Output PAD | |
| Indicators | Input clip, Dante, Output level, Gain reduction, Power | |
| Power Supply | 24V DC, 1A external adaptor | |
| Dimensions (WxHxD) | 2 RU, 480x135x90mm | |
| Weight | 3410 g | |
