- 1x LINE Input – balanced with ajustable gain -10db to +20 dB
- 16 High quality independent transformer balanced and isolated outputs
- Each Output is switchable between MIC or LINE level
- Built in High-Pass filter on the frequency of 40Hz
- Switchable Compressor and Limiter for Input channel
- Nominal Output level is selectable -6 dBu, 0 dBu, +4 dBu and +6 dBu
- Li-Ion AccuPack with microprocessor controlled battery management
- 10 hour full load capacity. Note: AccuPack is placed inside the unit
- AudioPressBox delivers audio in broadcast quality
 |
COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion. |
 |
HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out. |
 |
Transformer Separately transformer isolated outputs. |
 |
Rechargeable batteries Optional Built-in Li-Ion battery pack with microprocessor controlled battery management, 10 hour working time at full load. No self-discharge and memory effect, always ready to use. Short charging time compared to conventional batteries. |
Press conference with a mixing console and speakers:

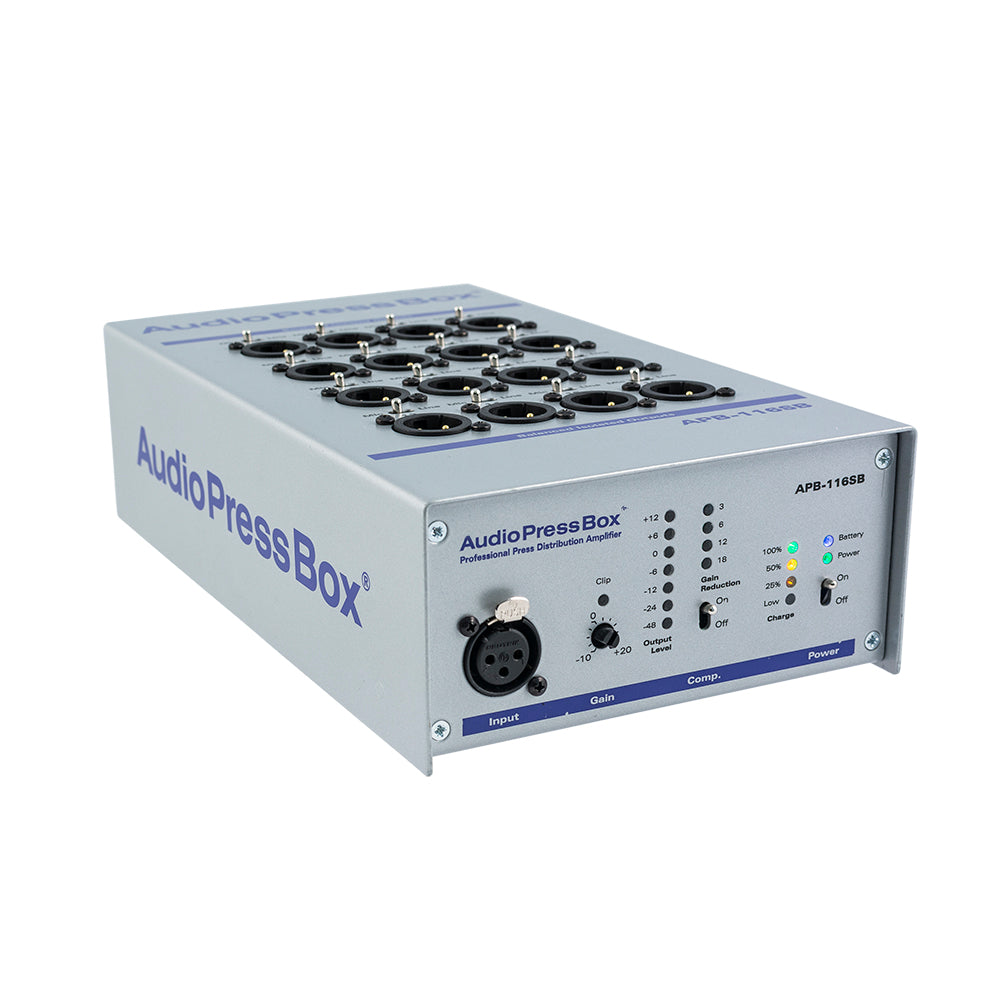

| Audio Press Box APB-116 SB | ||
|---|---|---|
| Type | 1 IN/ 16 | |
| Groups | 1 | |
| Input section | ||
| Inputs | 1 | |
| Input connectors | Balanced, XLR | |
| Max. input level | Line: +32/+2dBu | |
| Input Impedance | >5kOhm | |
| Output section | ||
| Outputs | 16 Line/MIC level | |
| Output connectors | Balanced, XLR | |
| Nominal Output Level - | -6/0/+4/+6 dBu | |
| Max. Output Level | +20dBu (no load) +16dBu (600kOhm) | |
| Output impedance | Mic: 220 Ohm | Line: 600 Ohm |
| Transformer isolated outputs | Yes (each output is Independant Transformer Isolated) | |
| SNR | 86dB at 0dB Gain 78dB at +20dB Gain | |
| Frequency Response | 30/160Hz (filter) to 60kHz/-1dB | |
| Controls | Input gain, Compressor,Power, Output PAD | |
| Indicators | Input clip, Output level, Gain reduction, Power, Battery status | |

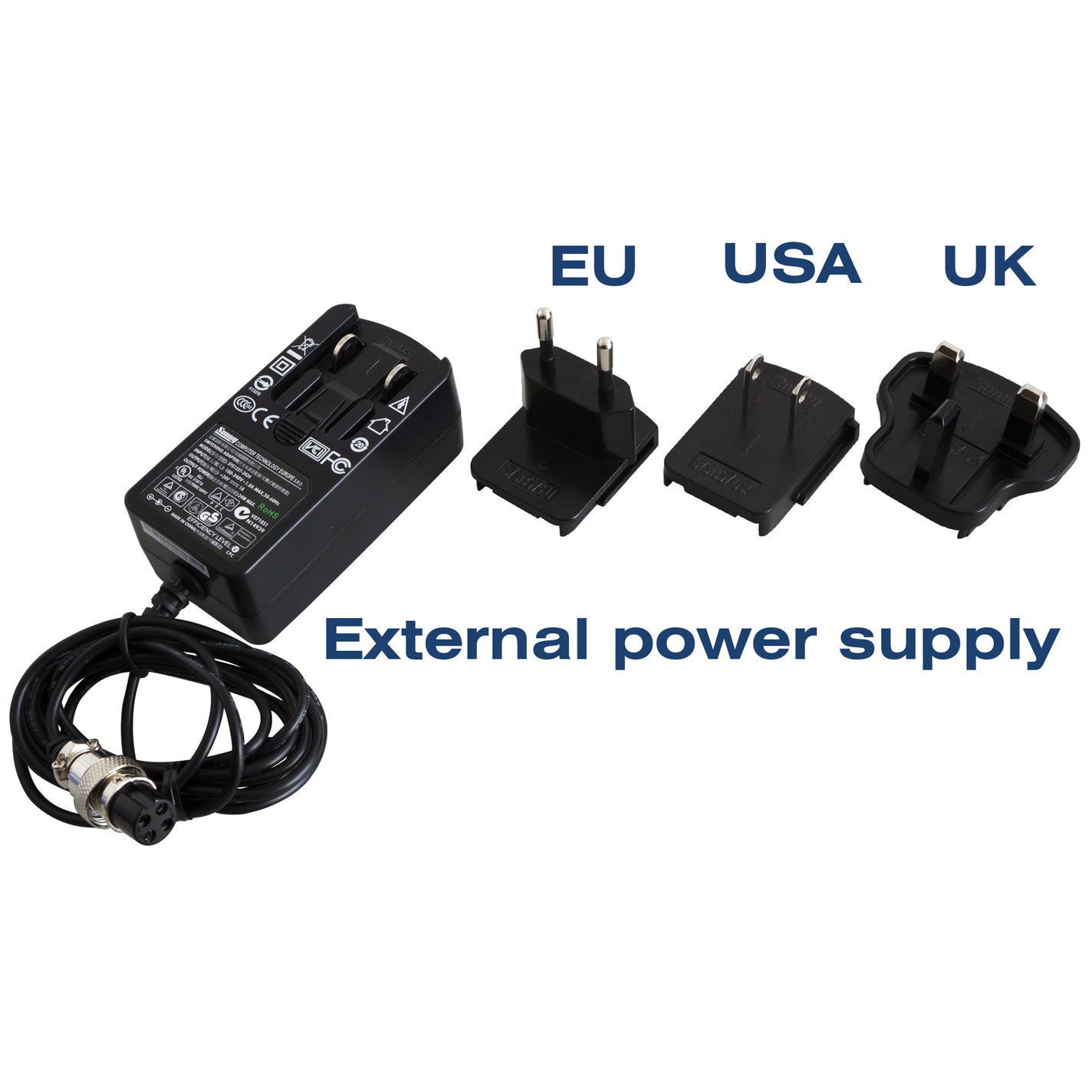

| Power Supply | 24V DC, 1A external adaptor | |
| Battery | Li-Ion, 7.2V 2200mAh, operation time 10 hours | |
| Dimensions (WxHxD) | 150x295x75mm | |
| Weight | 2920 g | |
APB-116 SB data sheet
download
APB-116 SB High Res Pictures [12.1 MB]
download
APB-116 SB AutoCad block schematic
download
APB-116 SB StarDraw block schematic
more info
APB-116 SB manual
more info
Accessories
If you wish to have a specific AudioPressBox of this type - Colour, number of inputs / outputs please let us know! You will be contacted as soon as possible within 24 hours.
