- 1 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD
- 24 High quality independent transformer balanced and isolated outputs
- Each Output is switchable between MIC or LINE level
- Switchable High-Pass filter for each Input channel
- Switchable Compressor and Limiter for each Input channel
- Constant level Test signal oscillator with no mistake switch operation
- Li-Ion AccuPack with microprocessor controlled battery management
- 8 hour full load capacity. Note: AccuPack is placed inside the unit
- AudioPressBox delivers audio in broadcast quality
 |
+48V If you are about to use condenser microphone, turn Phantom power switch ON to feed your microphone with 24/48V. If you use dynamic microphone or microphone with his own power, you can switch this OFF. |
 |
PAD If you are using microphone as an input, this button should be set to “Off” position. If you are using input from the mixing console or CD player, please set this switch to “On” position. |
 |
COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion. |
 |
HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out. |
 |
OSC (Oscillator operation switch) To test signal level, which is coming to the outputs, you can switch this Test 1kHz sine signal oscillator on. After recipients set the levels in their recording devices, you should switch this function OFF. When compressor switch is set to ON, output signal level won’t exceed this maximum output level. |
 |
Transformer Separately transformer isolated outputs. |
 |
Rechargeable batteries Optional Built-in Li-Ion battery pack with microprocessor controlled battery management, 10 hour working time at full load. No self-discharge and memory effect, always ready to use. Short charging time compared to conventional batteries. |
Press conference with a mixing console and speakers:
Press conference withouth mixing console and speakers:

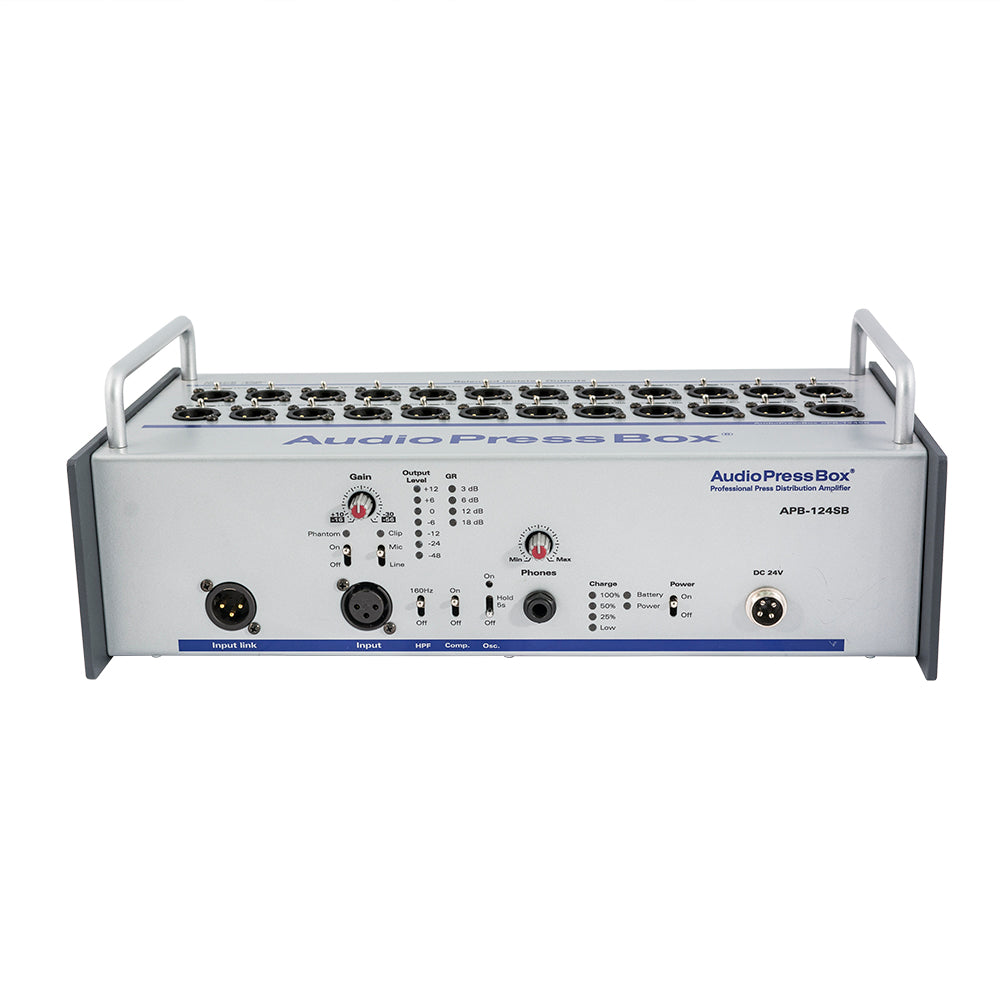

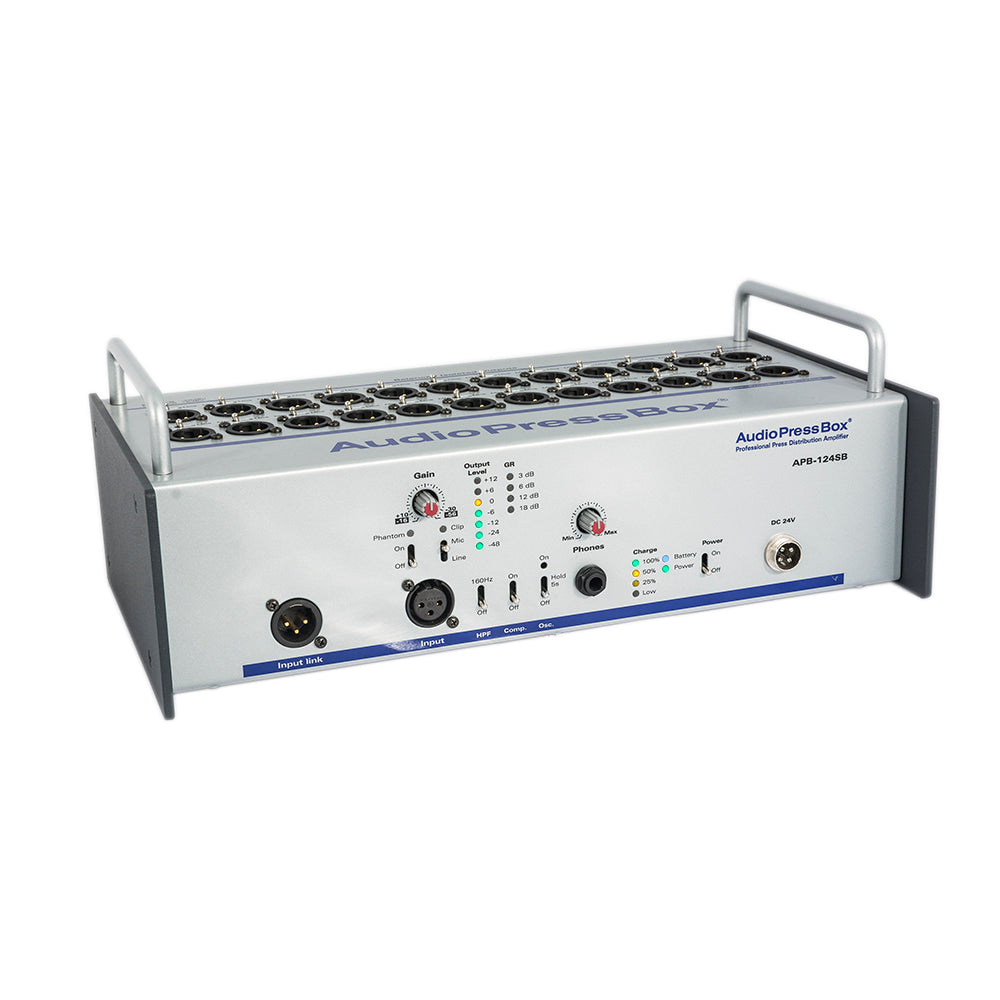

| Audio Press Box APB-124 SB | ||
|---|---|---|
| Type | 1 in 24 | |
| Groups | 1 | |
| Input section | ||
| Inputs | 1 | |
| Input connectors | Balanced, XLR | |
| Max. input level | Limiter ON Mic: -10/-30dBu Line: +36/-4dBu |
Limiter OFF Mic: -2/-42dBu Line: +24/-16dBu |
| Phantom Voltage | 48V | |
| Input Impedance | Mic: 2,4 kOhm | Line: 3,5 kOhm |
| Output section | ||
| Outputs | 24 MIC/LINE level | |
| Output connectors | Balanced, XLR | |
| Nominal Output Level | +6dBu | |
| Maximum Output Level | +20dBu (no load) +14dBu (600kOhm) |
|
| Output impedance | Mic: 220 Ohm | Line: 600 Ohm |
| Transformer isolated outputs | Yes (each output) | |
| SNR | 86dB | |
| Frequency Response | 30/160Hz (filter) to 30kHz/-1dB | |
| Controls | Mic/Line PAD, Input gain, Phantom, High-pass filter, Compressor, Oscillator, Phones level, Power, Output PAD | |
| Indicators | Input clip, Phantom power, Output level, Gain reduction, Power, Battery status | |

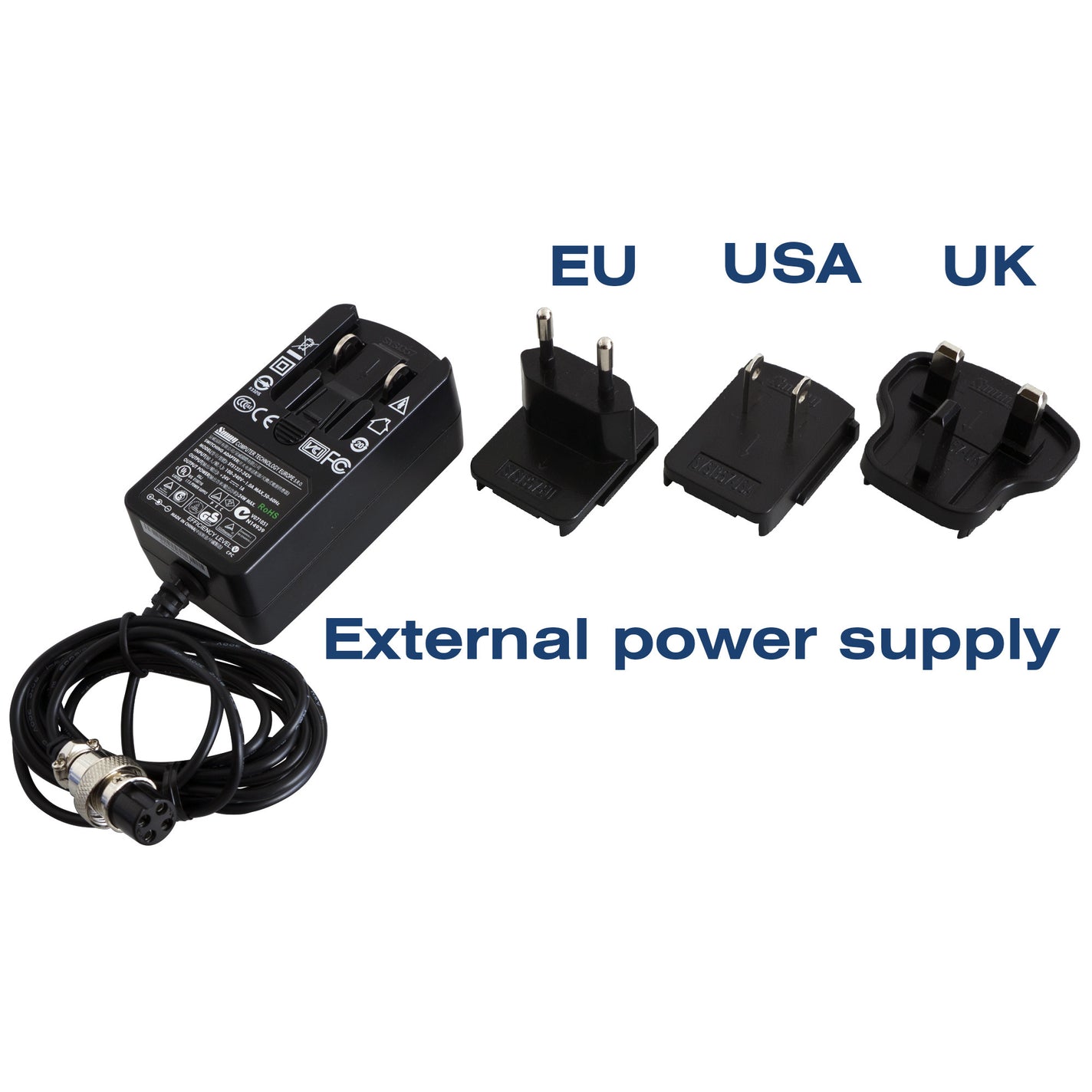

| Power Supply | 24V DC, 1A external adaptor | |
| Battery | Li-Ion, 14,4V 2200mAh | |
| Battery Operation Time | min. 12hrs | |
| Dimensions (WxHxD) | 365x195x135mm | |
| Weight | 4530 g | |
APB-124 SB data sheet
download
APB-124 SB High Res Pictures [7.9 MB]
download
APB-124 SB StarDraw block schematic
more info
APB-124 SB manual
more info
Accessories
If you wish to have a specific AudioPressBox of this type - Colour, number of inputs / outputs please let us know! You will be contacted as soon as possible within 24 hours.
